Have you ever installed a bright spotlight only to discover that it creates a small, harsh circle on the floor? Or chosen downlights that leave dark patches between each fitting?
The problem may not be the brightness of the light. It may be the beam angle.
Beam angle is one of the most important—and often overlooked—lighting specifications. It determines whether a light produces a concentrated spotlight, a balanced pool of illumination or a wide wash of general light.
Choosing the correct beam angle can help you:
- Highlight artwork and architectural features
- Illuminate kitchen worktops more evenly
- Reduce dark patches between downlights
- Create dramatic exterior lighting effects
- Avoid uncomfortable glare
- Make better use of the available lumens
This guide explains lighting beam angles in simple terms and shows you how to choose the right spread for every room in your home.
What Is a Beam Angle?
A beam angle describes how widely light spreads as it travels away from a light source.
A narrow beam concentrates light into a smaller area. A wide beam spreads the light across a larger surface.
In technical lighting documentation, the beam angle is commonly measured between the points where the light intensity has fallen to 50% of the maximum intensity at the centre of the beam. The edges of the visible light may continue beyond this measurement, but they will be less intense.

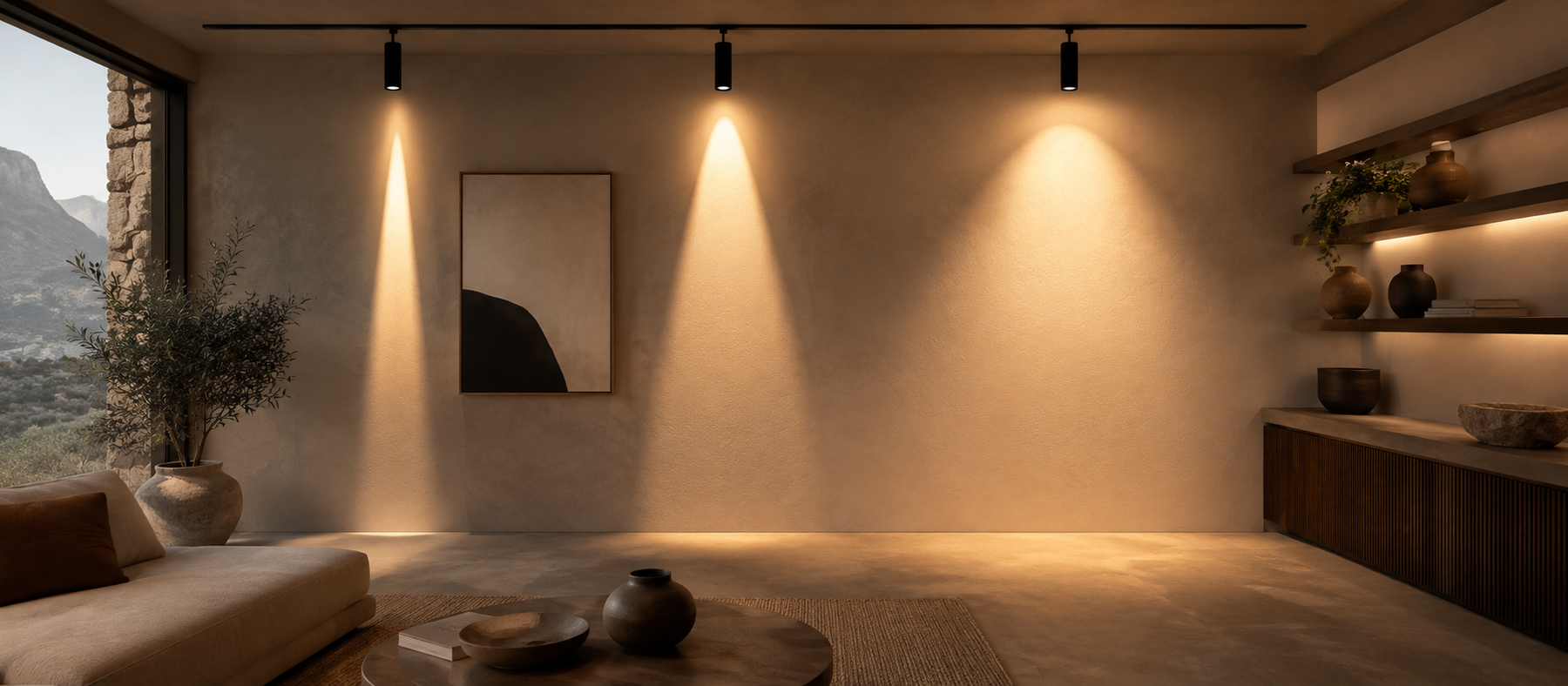

Imagine shining a torch at a wall:
- A narrow beam creates a small, bright circle.
- A medium beam produces a larger, softer pool.
- A wide beam spreads light across much more of the wall.
The beam becomes wider as the distance between the fitting and the illuminated surface increases.
Beam Angle Is Not the Same as Brightness
Beam angle and brightness are related, but they are not the same thing.
Lumens measure the total amount of visible light produced by a bulb or fitting.
Beam angle describes how that light is distributed.
Two spotlights can produce the same number of lumens but look very different:
- A narrow-beam spotlight concentrates the lumens into a smaller area, making the centre appear more intense.
- A wide-beam spotlight distributes the same lumens over a larger area, producing softer and more even illumination.
This is why a higher-lumen light does not automatically solve a lighting problem. You need the correct combination of:
- Lumens
- Beam angle
- Mounting height
- Fitting position
- Colour temperature
- Number of light sources
A narrow beam can look brighter at its centre, even when it produces fewer lumens than a wide-beam fitting.
Understanding Common Beam Angles
Manufacturers do not always use identical descriptions for beam-angle categories. One recognised classification system divides beam widths into very narrow, narrow, medium and wide groups, but residential product descriptions often use simpler terms.
The following ranges provide a practical starting point.
Very Narrow Beam: Below 15°
A very narrow beam creates a concentrated shaft of light.
It is normally used for dramatic accent lighting rather than general household illumination.
Suitable applications include:
- Highlighting a small sculpture
- Illuminating a narrow architectural column
- Creating dramatic beams on exterior walls
- Lighting a tall tree from below
- Producing decorative patterns with wall lights
A very narrow beam must be positioned carefully. Even a small change in direction can move the illuminated area away from the intended feature.
Very narrow beams are usually most effective as part of a layered lighting design rather than as the room’s main source of light.
Narrow Beam: Approximately 15°–30°
A beam of approximately 15° to 30° produces focused, directional light.
This range works well for:
- Artwork
- Display shelves
- Bedside reading lights
- Kitchen task lighting
- Sculptures
- Plants
- Retail displays
- Exterior architectural details
Angles between approximately 15° and 30° as suitable for spotlighting, while wider distributions are generally better for broader illumination.
A narrow beam is useful when you want to direct attention towards something specific. It can create contrast between the illuminated feature and its surroundings.
However, narrow beams can create harsh bright spots when used incorrectly. They may also leave dark gaps if used as the only source of general lighting.
elevenpast currently carries directional fittings with beam angles in this range, including a 24° spotlight and adjustable reading lights with approximately 30° beams. These specifications demonstrate how narrow beams are commonly used for focused accent and task lighting.
Medium Beam: Approximately 30°–45°
Medium beams offer a useful balance between focus and coverage.
This is one of the most versatile beam-angle ranges for residential interiors.
A 36° beam, for example, can work for both accent lighting and some general-purpose applications, depending on mounting height, spacing and lumen output. Philips describes its 36° GU10 spotlight as suitable for focused accent lighting and general-purpose use.
Medium beams are commonly used for:
- Track lighting
- Kitchen downlights
- Living-room accent lighting
- Passage lighting
- Display cabinets
- Artwork
- Dining-room features
- Home offices
A medium beam can highlight an object without creating an excessively tight circle of light.
elevenpast product examples include track and spot fittings with beam angles around 38° and 45°. These provide more coverage than a narrow reading spotlight while maintaining a controlled, directional effect.
Wide Beam: Approximately 45°–60°
A beam between approximately 45° and 60° covers a broader area.
It is useful for:
- General room illumination
- Kitchens
- Living rooms
- Bedrooms
- Passages
- Larger artwork
- Wider feature walls
- Rooms with standard ceiling heights
Wide beams make it easier to overlap the light from neighbouring fittings. This helps reduce visible dark patches between downlights.
A wider beam does not necessarily mean that the room will be brighter. The same number of lumens is being distributed over a larger area, so the centre of the beam may appear less intense.
Extra-Wide Beam: 60° and Above
Beam angles above approximately 60° are generally used when broad, even coverage is more important than concentrated intensity.
They work well for:
- General ceiling lighting
- Utility rooms
- Low-ceiling spaces
- Large open-plan rooms
- Surface-mounted LED panels
- Wide wall washing
- Diffused outdoor lighting
Downlights commonly use beam angles of approximately 20° to 60°, while panel-style lights can provide distributions around 120°.
Some elevenpast integrated LED ceiling lights also use 120° beam angles to distribute illumination widely across a room.
A very wide beam can provide comfortable general lighting, but it is less suitable when you want to create contrast or highlight a specific object.
Beam Angle Comparison
| Beam angle | General description | Best suited to |
|---|---|---|
| Below 15° | Very narrow | Decorative beams and precise accent lighting |
| 15°–30° | Narrow | Artwork, reading and focused features |
| 30°–45° | Medium | Track lights, task lighting and flexible accent lighting |
| 45°–60° | Wide | Downlights and general residential lighting |
| 60°–90° | Very wide | Broad room illumination and wall washing |
| 90°–120°+ | Extra wide | Panels, diffused ceiling lights and large-area coverage |
These ranges are practical guidelines rather than universal rules. Always check how the individual manufacturer describes the product’s light distribution.
How Mounting Height Changes the Beam Spread
The beam angle remains the same, but the illuminated circle becomes larger as the light travels further from the fitting.
A narrow spotlight installed close to a wall may create a small pool of light. Install the same fitting much further away and the illuminated area becomes wider.
The approximate diameter of the beam can be calculated using:
Beam diameter = 2 × distance × tan (beam angle ÷ 2)
The distance should be measured from the light source to the surface being illuminated.
For example, when a fitting is approximately 2.4 metres from the floor:
| Beam angle | Approximate beam diameter |
| 15° | 0.63 m |
| 24° | 1.02 m |
| 36° | 1.56 m |
| 45° | 1.99 m |
| 60° | 2.77 m |
These calculations describe the approximate primary beam area. The visible light may extend beyond it at a lower intensity.
The table also shows why mounting height matters so much. A 24° downlight can create a relatively concentrated pool at standard ceiling height, while a 60° fitting covers a much broader section of the floor.
Choosing a Downlight Beam Angle
The correct downlight beam angle depends on what the fitting needs to illuminate.
For General Lighting
A medium-to-wide beam is usually the most practical starting point.
Wider beams overlap more easily and create a more even lighting pattern. This is useful in living rooms, bedrooms, kitchens and passages.
A beam that is too narrow can create a series of bright circles surrounded by darker areas.
For Accent Lighting
Choose a narrower beam when you want to highlight:
- Artwork
- A coffee table
- A sculpture
- A fireplace
- A textured wall
- A plant
- A display cabinet
Adjustable downlights or track spotlights are particularly useful because you can redirect the beam after installation.
For High Ceilings
A narrow or medium beam can help concentrate light over the greater distance.
If you use an extremely wide beam from a high ceiling, the light may spread over such a large area that it loses visual impact.
However, the right choice still depends on lumen output and the size of the area being illuminated.
For Low Ceilings
Wider beams usually provide more even coverage because the light has less distance in which to spread.
A narrow fitting installed in a low ceiling may produce obvious bright spots directly beneath each light.
How Far Apart Should Downlights Be?
There is no single spacing measurement that works for every room.
Downlight spacing depends on:
- Beam angle
- Ceiling height
- Lumens
- Room dimensions
- Wall colours
- Furniture placement
- Natural light
- The required brightness
- Whether the lights are fixed or adjustable
The aim is generally to allow neighbouring beams to overlap sufficiently for a balanced result.
For example, a 36° beam installed at a distance of 2.4 metres produces a primary beam diameter of approximately 1.56 metres. Placing lights much further apart than the beam diameter may produce visible dark gaps.
This does not mean every fitting must be spaced exactly 1.56 metres apart. The ideal overlap depends on the fitting’s photometric performance and the desired effect.
Avoid automatically arranging downlights in a rigid grid. Position them according to:
- Kitchen counters
- Seating areas
- Tables
- Artwork
- Passage routes
- Cabinets
- Architectural features
Best Beam Angle for Each Room
Living Room
A living room normally needs a combination of general and accent lighting.
Use:
- Medium or wide beams for general downlights
- Narrower adjustable beams for artwork
- Wall lights to brighten vertical surfaces
- Table and floor lamps for softer ambient light
Do not rely entirely on narrow downlights. This can make the room feel patchy and overly dramatic.
For a comfortable result, combine ceiling lighting with lamps and wall lights at different heights.
Kitchen
Kitchens need clear task lighting on counters and preparation areas.
Medium beams can work well for directional ceiling lights, while wider beams are useful for general illumination.
Position the fittings so that your body does not cast a shadow over the worktop. Under-cabinet lighting can then provide direct illumination where ceiling lights cannot reach.
Use narrower beams selectively to highlight:
- An island
- Open shelving
- A splashback
- Display cabinets
- A coffee station
A pendant with a solid shade may also produce a controlled downward beam over an island or dining surface.
Dining Room
A pendant above a dining table usually directs light downwards over the tabletop.
The ideal spread should cover most of the table without creating excessive glare for seated guests.
A very narrow beam may create a small bright patch in the middle of the table, while the ends remain dark.
A wider or diffused distribution is often more practical for long dining tables. Multiple pendants can also distribute light more evenly.
Accent spotlights can be used separately to illuminate artwork, a sideboard or a feature wall.
Bedroom
Bedrooms benefit from soft, layered lighting.
Use wider beams for general ceiling illumination and narrower beams for bedside reading.
A reading light around 24° to 30° can focus light onto a book while limiting the amount of spill across the rest of the room. elevenpast carries integrated reading fittings with approximately 30° beam angles for this type of targeted illumination.
Check that the reading light is adjustable and positioned so that it does not shine directly into your eyes.
Bathroom
Use broad, even lighting for the main bathroom area and focused lighting only where it serves a specific task.
Narrow ceiling beams can produce unflattering facial shadows, particularly when they are positioned directly above the basin.
Combine general ceiling lighting with mirror or vanity lighting to illuminate the face more evenly.
Always choose fittings with an appropriate IP rating for their bathroom location.
Passage and Staircase
Passages usually benefit from medium or wide beams that create even illumination along the route.
Narrow beams can be used for decorative effects on artwork or textured walls, but should not leave unsafe dark areas between fittings.
For staircases, combine general lighting with wall lights, step lights or footlights.
Outdoor Areas
Beam angle has a major effect on outdoor lighting.
Use narrow beams to highlight:
- Trees
- Columns
- Sculptures
- Stone walls
- Architectural details
Use wider beams for:
- Driveways
- Pathways
- Patios
- Entertainment areas
- General security illumination
A narrow garden spike light can create height and drama when aimed into a tree canopy. A wider floodlight is more appropriate when the goal is to illuminate an entire driveway or courtyard.
Outdoor projectors are available with different or adjustable beam distributions because the correct spread depends on the feature and viewing distance.
Beam Angle and Wall Lighting
Wall lights often use beam angle as part of their decorative effect.
An up-and-down wall light may create:
- Two narrow triangular beams
- A wide hourglass pattern
- A soft diffused glow
- Four separate decorative beams
- An adjustable combination
Narrow beams create a sharp, architectural appearance. Wider beams produce a softer and more subtle effect.
The wall texture also matters. Narrow directional light exaggerates surface texture and imperfections, while diffused light produces a more even appearance.
Some adjustable wall lights allow you to alter the beam pattern after installation, making it possible to create a personalised effect. elevenpast offers adjustable multi-directional wall fittings designed for this purpose.
Beam Angle vs Field Angle
You may occasionally see both a beam angle and a field angle on a technical specification sheet.
The beam angle normally describes the central area where the light intensity remains at least 50% of its maximum.
The field angle describes a larger area where the intensity has dropped further but visible light is still present.
For most household purchases, the listed beam angle provides enough information. Detailed field-angle data is more commonly used for professional architectural, theatrical and commercial lighting calculations.
Common Beam-Angle Mistakes
Looking Only at Wattage
Wattage measures energy use rather than light spread or brightness.
Check lumens and beam angle as well.
Using Narrow Beams for All General Lighting
Narrow downlights may leave obvious dark gaps and bright circles.
Use wider beams or closer spacing for more even coverage.
Choosing an Extremely Wide Beam for Artwork
A very wide beam can illuminate the entire surrounding wall, reducing the contrast that makes the artwork stand out.
Use a controlled medium or narrow beam instead.
Ignoring Ceiling Height
The beam becomes wider as the distance increases.
A fitting that works well under a 2.4-metre ceiling may create a very different result in a double-volume room.
Placing Spotlights Too Close to a Wall
A spotlight positioned too close to the wall can produce harsh scallops and reveal surface imperfections.
Test the fitting position and direction before final installation.
Confusing Sensor Angle With Light Beam Angle
Some outdoor products list both a sensor detection angle and a lighting beam angle.
The sensor angle describes the area in which movement can be detected. It does not necessarily describe how widely the light itself spreads.
Assuming Every 36° Light Looks the Same
Two fittings with the same beam angle may still perform differently because of:
- Lumen output
- Reflector design
- Lens quality
- Glare control
- Beam uniformity
- Colour rendering
- Light source depth
Beam angle is important, but it is only one part of the specification.
What to Check Before Buying
Before choosing a spotlight, downlight or directional fitting, check:
- Beam angle
- Lumens
- Colour temperature
- Colour rendering index
- Dimming compatibility
- Fitting dimensions
- Cut-out size for recessed lights
- Whether the fitting is fixed or adjustable
- IP rating
- Whether the bulb is included or replaceable
- Ceiling height
- Distance from the illuminated object
elevenpast’s light-bulb collection includes bulb types such as GU10, E27, E14, G9 and B22, with product specifications that may include lumens, colour temperature and beam angle.
Frequently Asked Questions
What is the best beam angle for downlights?
For general residential lighting, a medium or wide beam of approximately 36° to 60° is often a practical starting point. A narrower beam may be more suitable for accent lighting, while a wider beam provides broader coverage.
The correct choice depends on ceiling height, spacing, lumens and the area being illuminated.
Is a 36° beam angle narrow or wide?
A 36° beam is generally considered a medium beam.
It provides more coverage than a narrow 15° or 24° spotlight while remaining directional enough for accent and task lighting.
What is a 60° beam angle used for?
A 60° beam provides relatively wide coverage and can work well for general room lighting, low ceilings and areas where neighbouring light beams need to overlap.
What is the best beam angle for artwork?
A beam between approximately 15° and 36° is often suitable, depending on the size of the artwork and the distance from the light.
Small artworks may need a narrower beam, while large artworks require a broader spread.
What beam angle is best for a kitchen?
Medium and wide beams are usually useful for kitchen lighting.
A beam around 36° to 60° can provide practical ceiling illumination, while narrower adjustable beams can highlight an island, shelf or feature.
Does a wider beam angle mean more light?
No. A wider beam spreads the available lumens across a larger area.
A narrow beam concentrates light and may look brighter at its centre, even when both fittings produce the same total lumens.
What is the difference between a spotlight and a floodlight?
A spotlight generally produces a narrower, more concentrated beam.
A floodlight spreads light across a wider area.
The exact beam-angle ranges vary between manufacturers and products.
Can I change the beam angle of a light?
Some fittings have adjustable lenses, shutters or reflectors that allow the beam to be changed.
For fixed fittings and bulbs, the beam angle cannot normally be altered. You would need to replace the bulb, optic or complete fitting.
Choose the Right Light for the Right Effect
Beam angle determines where your light goes.
A narrow beam creates focus and drama. A medium beam offers a balance between control and coverage. A wide beam provides softer and more even illumination.
Before choosing a light, consider:
- What needs to be illuminated
- How far the fitting is from the surface
- Whether the light is for general, task or accent lighting
- How much overlap is needed
- The fitting’s lumen output
- The desired atmosphere
The best lighting schemes rarely use only one beam angle. Combining wide general lighting with narrower accent and task lighting creates depth, comfort and visual interest.
Explore elevenpast’s range of ceiling lights, wall lights, outdoor lights and light bulbs to find the right fittings for your home.
elevenpast delivers contemporary lighting and homeware throughout South Africa.
